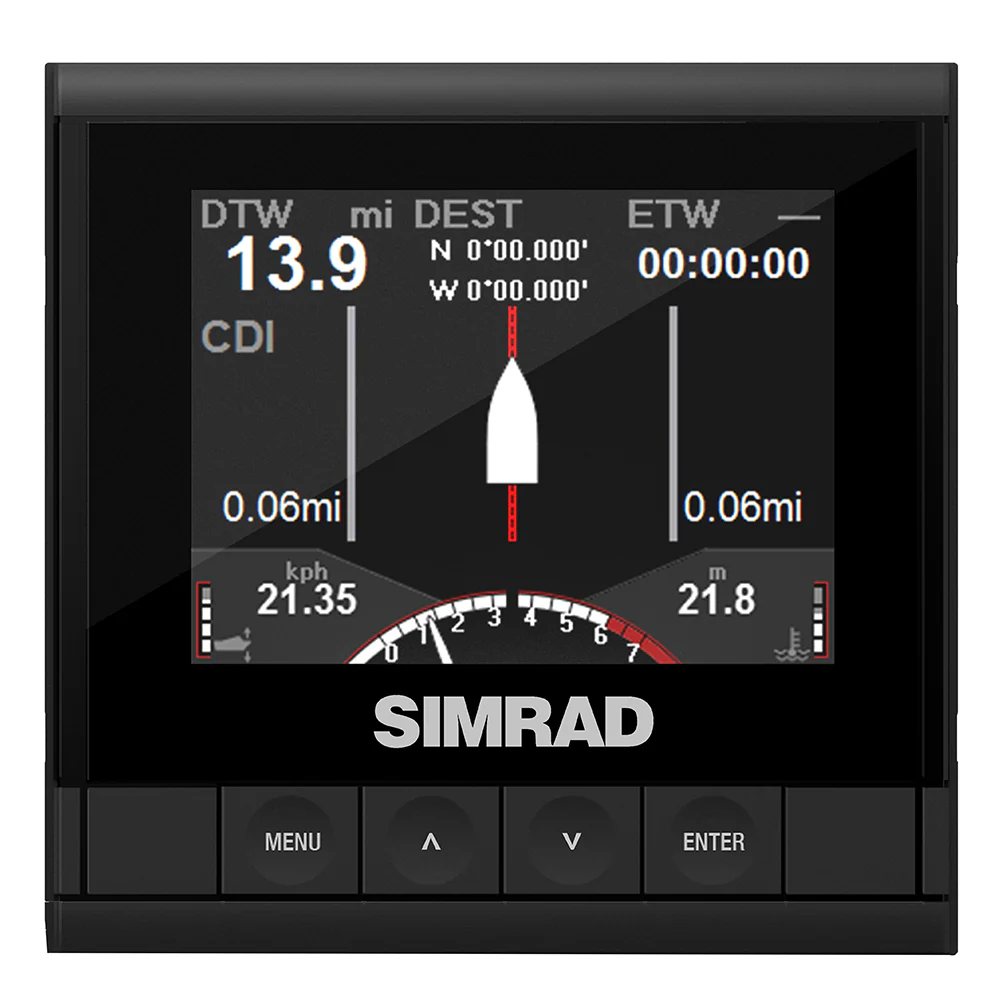

Simrad IS35 Digital Display [000-13334-001]

Description

The IS35 is used to display engine and vessel related data on the network provided by NMEA2000 compatible engines and sensors. The types of data available for display are determined by the available NMEA2000 sensors on the network. You can use the IS35 as engine display for most types of marine engines, either via a NMEA2000 gateway, or a J1939 to NMEA2000 convertor. (for example the Livorsi CAN Data Gateway). The IS35 comes with 5 pre-configured pages for the most commonly used information when operating vessels. The information on these pages is automatically displayed from an internal hierarchy of available data. The hierarchy was developed from market and customer surveys about which information the boat owners themselves consider the most important information to see on their displays

Features

Automatic display of prioritized dynamic data types. (RPM, fuel flow, economy, speed etc
Bright, full color 240 x 360 LED screen makes it easier to see menus and screen detail in both full sunlight and night operation
Menu button doubles as backlight control
Simple menu navigation using menu, arrow and enter buttons
Easily swap between pages using arrow keys
Page cycle with configurable times
Surface mount, or flush/rear mount option

Pre configured data pages

Motoring
Engine Monitoring
Fuel Economy
Depth History
Motor Steer
Device will automatically detect available sensors on the network and display the most relevant information on the corresponding pages

User Interface The IS35 is running on the NOS (Navico Operating System) platform. Anyone that is familiar with Navico products will quickly and easily understand the user interface of the IS35. Power Control The unit automatically starts up when N2K bus is powered. The IS35 can't be powered off but can be put into standby. Refueling You can quickly set the fuel to full, or add a fuel amount directly from pressing menu on the fuel page, or by the settings menu and going to `Fuel'. Auto scroll The IS35 can be set to automatically scroll through the pages ranging from 1 to 10 seconds.

Key Selling Features

Easy to install
Fits standard gauge hole
Display NMEA2000 engine information affordably
Automatically displays information relevant to which sensors are installed
Easily display fuel management information
Glass dash low profile display
Rear mount option for flush mount glass dash installs
Automatic page scrolling with configurable adjustable delay time
Simple user interface
Dedicated engine display
Display following information on non-NMEA2000 engines by installing sensors:
Fuel flow
Fuel used
Fuel remaining
Water pressure

Product Specifications

Simrad IS35 Digital Display [000-13334-001] Product Specifications

Specifications:

Display

Resolution: 320 x 240 (H x W)
Type: LED-backlit TFT-LCD
Backlight Color: Day (white) / Night (red)
Size: 88.9 mm / 3.5"

Physical & Environment

Width: 102 mm (4.0")
Depth: 122 mm (4.8")
Height: 99.7 mm (3.9")
Weight: 0.28 kg (0.60 lb)
Operating Temperature: -15°C to +55°C (5°F to 131°F)
Environmental Rating: IPX7

Electrical

Power Consumption: 130 mA @ 13.5V

Specifications

Instrument Function: Multifunction
Type: Parts
Box Dimensions: 6"H x 7"W x 9"L
Shipping Weight: 1.4 lbs
UPC: 9420024155578

Product Manual

IS35 Panel Mount Installation Guide

IS35 Rear Mount Installation Guide

IS35 User Manual

Product Warranty

Simrad Warranty

Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
