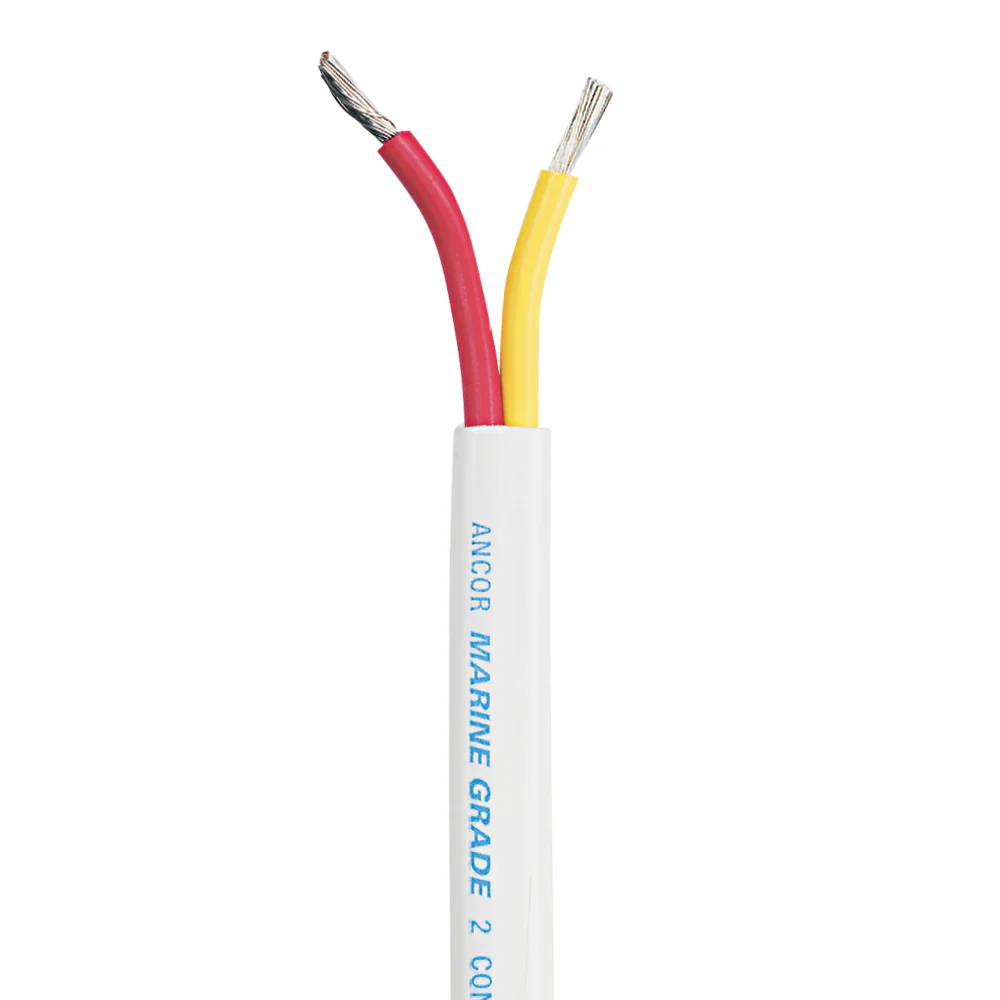

Ancor Safety Duplex Cable - 18/2 - 100' [124910]
Ancor Safety Duplex Cable - 18/2 - 100' [124910]
Description
The ANCOR Duplex Cable exceeds the highest UL Boat Cable standards, featuring ultra-flexible Type 3/Class K stranding that resists fatigue from vibration and repeated flexing. Its outer jacket is engineered for easy removal while offering superior abrasion resistance.
ANCOR’s proprietary premium vinyl insulation remains flexible even in extreme cold and provides excellent resistance to salt water, battery acid, oil, gasoline, and ultraviolet radiation. Rated for 600 volts, 105°C dry, and 75°C wet, this insulation delivers exceptional durability against heat and abrasion. The inner conductors are color-coded to ABYC standards, featuring red and yellow Marine Grade primary wires within a white common jacket for easy identification and safe installation.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Safety Duplex Cable - 18/2 - 100' [124910] Product Specifications
| Specification | Details |
|---|---|
| Gauge / Wire Gauge | 18 AWG (2 conductors) |
| Length | 100 feet |
| Color | Red and Yellow conductors in white common jacket |
| Wire Type | Flat |
| Conductor Material | Tinned Copper |
| Insulation | Premium vinyl |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C (dry), 75°C (wet) |
| Flexibility | Ultra-flexible (Type 3/Class K) – resists fatigue due to vibration and flexing |
| Chemical Resistance | Resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation |
| Compliance | UL 1426, ABYC standards, U.S. Coast Guard Charter Boat (CFR Title 46) |
| Box Dimensions | 5" H x 7" W x 7" L |
| Weight | 3.4 lbs |
| UPC | 091887806069 |
Product Manual
Quick Guide (pdf)
Brochure (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
